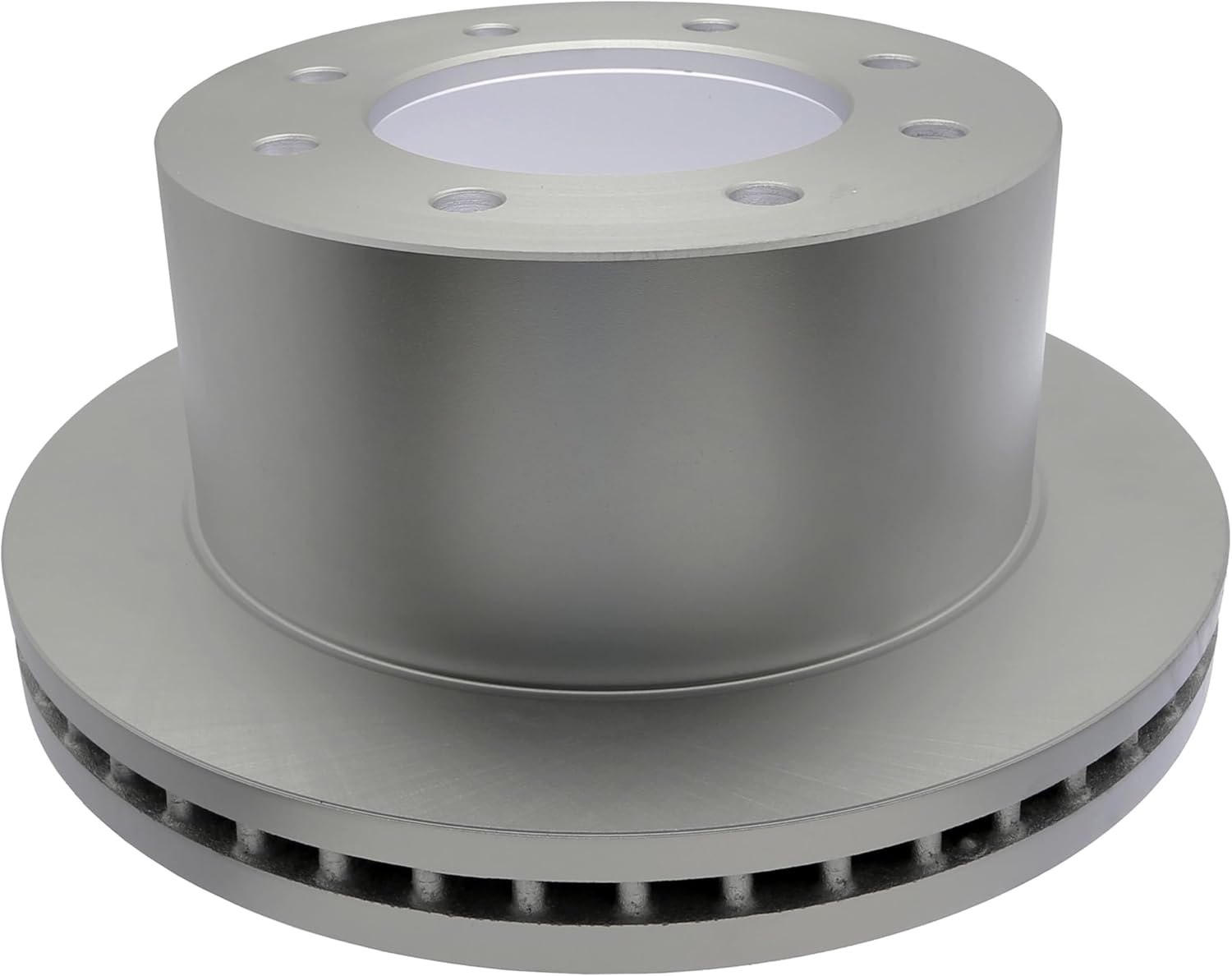

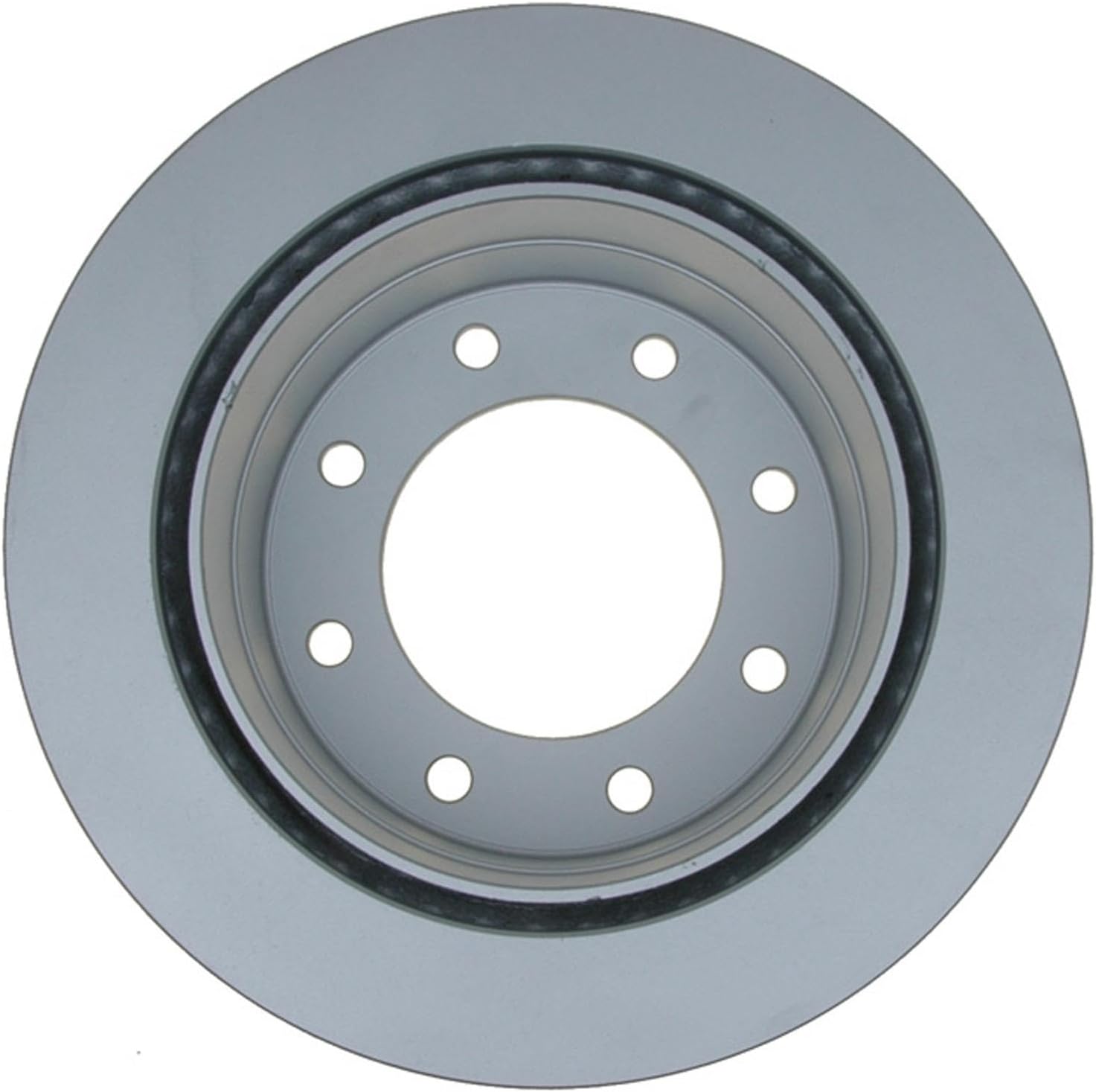

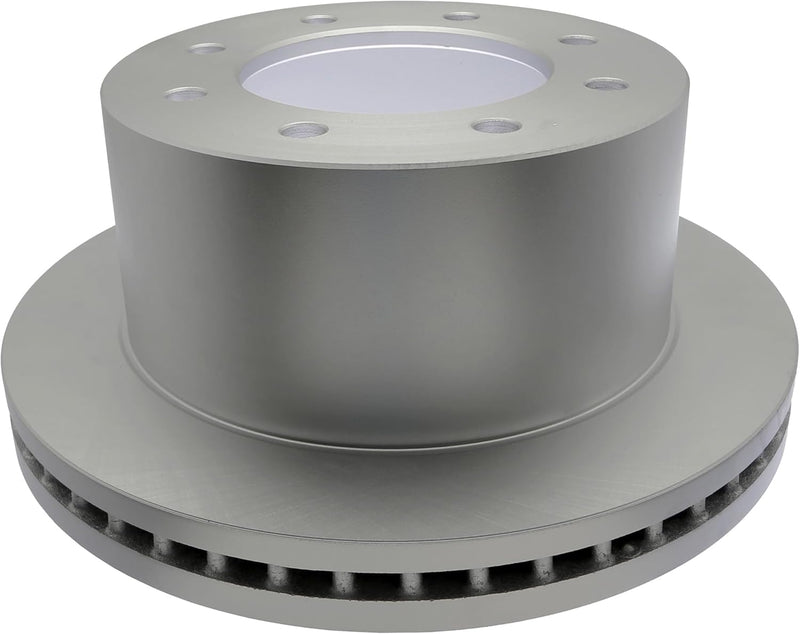

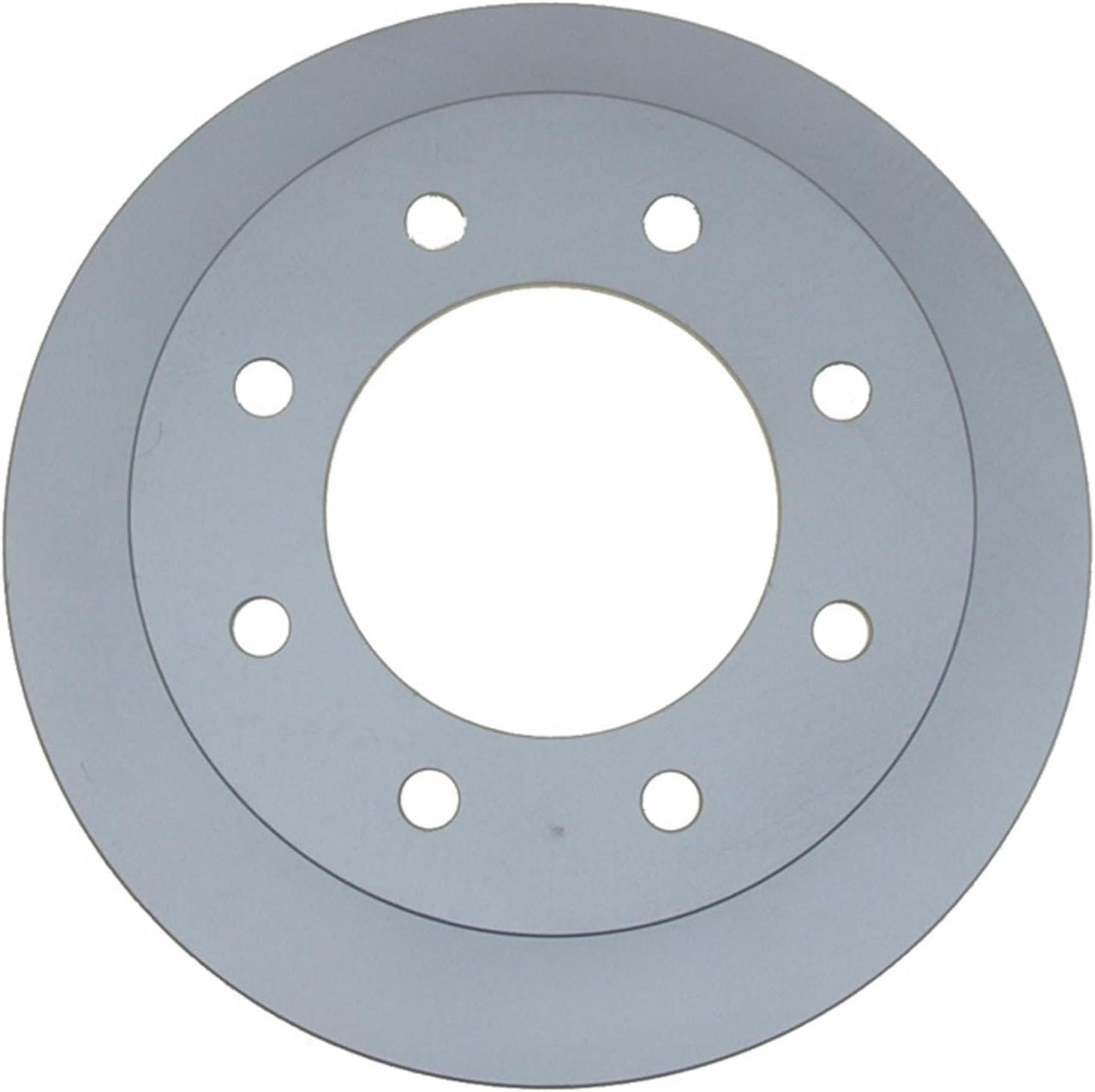

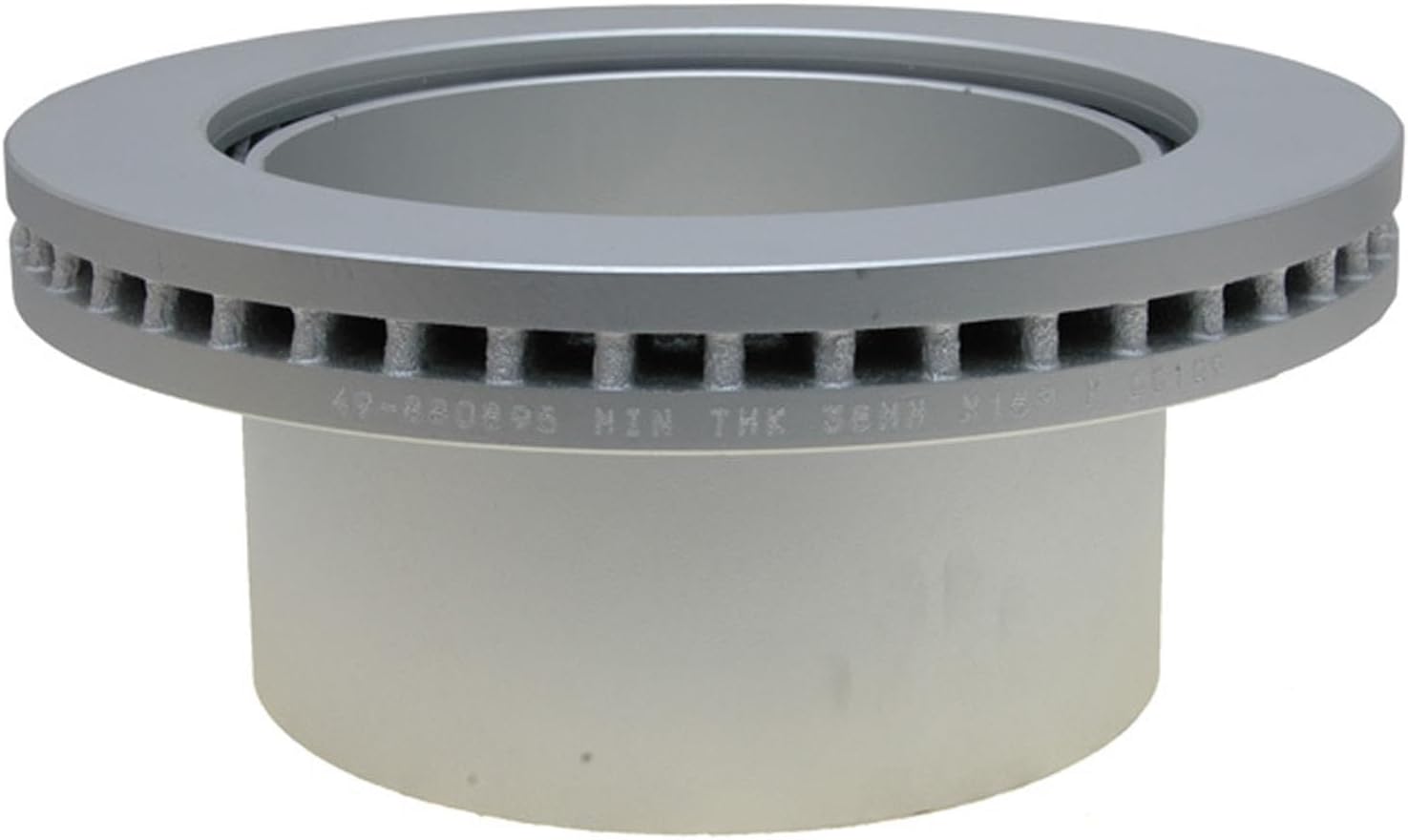

The ACDelco Gold Disc Brake Rotor - Fully Coated (Rear) 18A2797 is a fully coated premium replacement for the worn rotor in your Chevy Silverado or GMC Sierra 2500HD/3500HD. This rotor features a baked on zinc-coating on the entire rotor surface for maximum corrosion resistance. The protective micron-thin layer helps to inhibit environmental corrosion better than non-coated rotors and proved in up to 200 hours of industry-standard salt-spray testing. ACDelco Gold (formerly known as ACDelco Professional) parts are manufactured to meet your expectations for fit, form, and function, and are backed by General Motors.
Features:
- Independently Tested With Noise/Vibration/Harshness (NVH) And Durability/Wear Testing - Resulting In High Quality And Reliable Rotors
- Follows Original Manufacturers' Designs For Dispersing Heat, Helping To Prolong Pad And Rotor Life While Also Helping To Minimize Noise And Vibration
- Cool Shield Coating - Entire Rotor Surface Including Edges And Vanes Have Baked-On Zinc Coating For Durability And Long Lasting Protection Compared To Uncoated
- Protective Micron-Thin Layer Helps To Inhibit Environmental Corrosion Better Than Non-Coated Roated Rotors; Proved In Up To 200 Hours Of Industry-Standard Salt-Spray Testing
Specifications:
Height (IN): 4.2
Width (IN): 14.1
Length (IN): 14.1
Weight (lb): 45.6
Material: Cast Iron
Surface Type: Smooth
Construction: Full Cast
Overall Height (MM): 150
Discard Thickness (MM): 38
Nominal Thickness (MM): 40
Outside Diameter (MM): 355
Overall Height (IN): 5.906
Inside Diameter (MM): 255.2
Inside Diameter (IN): 10.047
Discard Thickness (IN): 1.496
Nominal Thickness (IN): 1.575
Outside Diameter (IN): 13.976
Bolt Circle Diameter (IN): 7.09
Center Hole Diameter (IN): 5.12
Bolt Circle Diameter (MM): 180.09
Center Hole Diameter (MM): 130.05
Solid Or Vented Type Rotor: Vented
Overall Rotor Diameter (mm): 355.09mm
Mounting Bolt Hole Diameter (IN): 0.636
Mounting Bolt Hole Diameter (MM): 16.15
Mounting Bolt Hole Circle Diameter (MM): 180
Mounting Bolt Hole Circle Diameter (IN): 7.087
Directional or Non-Directional Brake Surface: No
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
