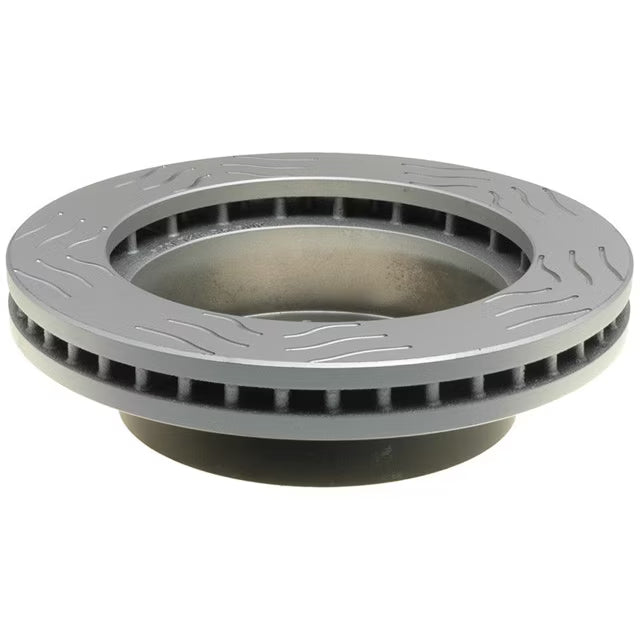

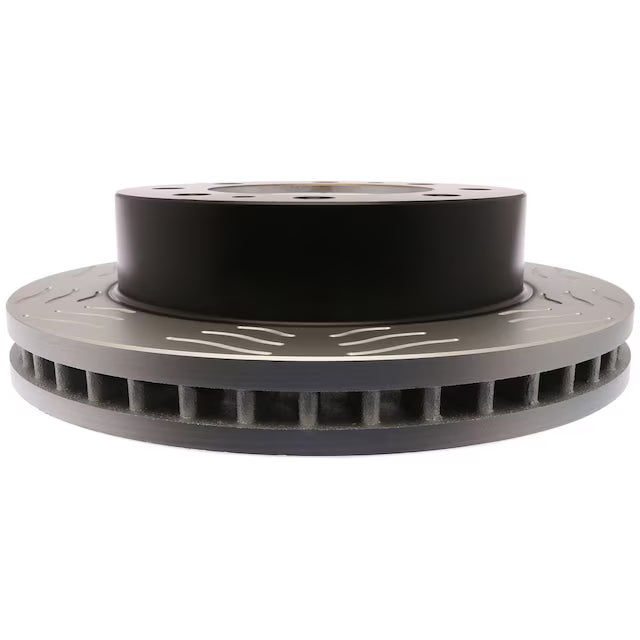

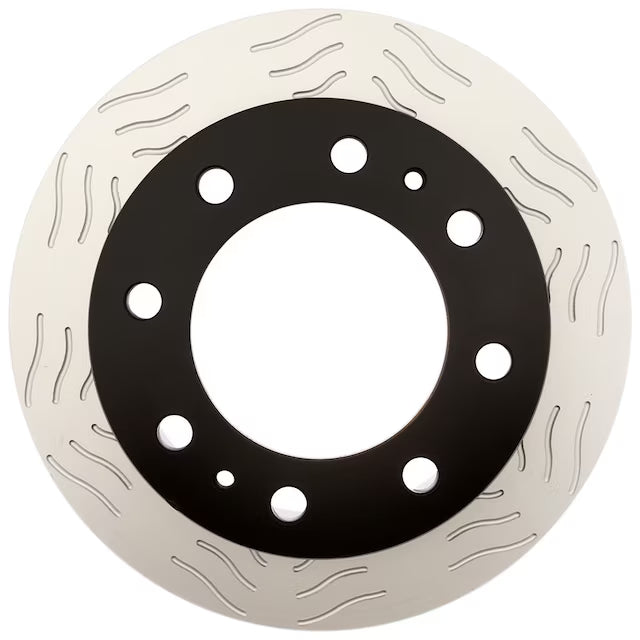

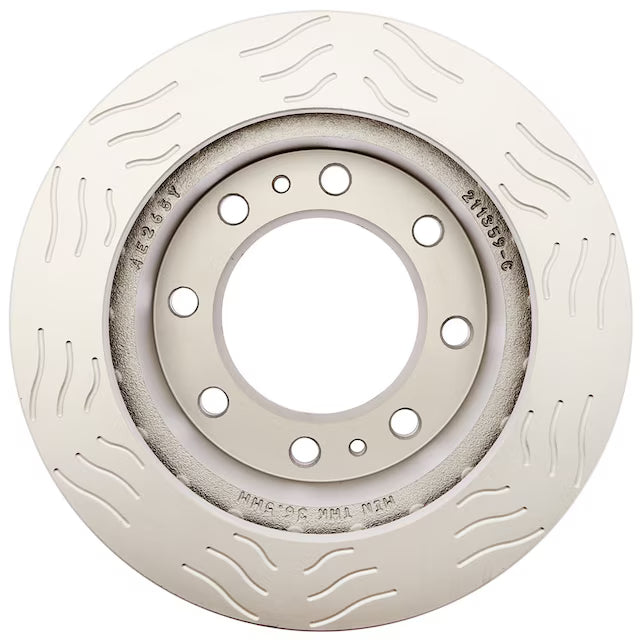

ACDelco 18A1206SD Performance Slotted Disc Brake Rotor (Front) (2001/04-2010 6.6L Duramax SRW)
Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295
Save Contact
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the ACDelco 18A1206SD Performance Slotted Disc Brake Rotor (Front) (2001/04-2010 6.6L Duramax SRW) you will earn 235 DIESEL DOLLARS in your SDS Fuel Tank!
Upgrade the brakes in your Chevy Silverado or GMC Sierra 2500HD/3500HD with an ACDelco Performance Slotted Disc Brake Rotor (Front) 18A1206SD. The Performance Slotted rotors are ideal for high-performance vehicles, off-road vehicles, SUVs, trucks, and fleet vehicles. The slotted design helps with improved heat dissipation and gas venting, by allowing gases to escape to reduce brake fade and the rotors from overheating during heavy use. They are inspected for thickness variation to minimize pedal pulsation, noise, and help to extend brake pad life. ACDelco parts are manufactured to meet your expectations for fit, form, and function, and are backed by General Motors.
Features:
- Mill Balanced To Minimize Vibration
- Damped Iron Metallurgy Helps With Noise And Heat Levels
- Slotted Design For Improved Heat Dissipation & Gas Venting
- Black And Gray Fusion Coating Provides Corrosion Protection
- Match OE Vane Configuration To Help Minimize Brake Wear And Optimize Cooling
- Non-Directional Rotation Eliminates The Need For Unique Left And Right Designations
Specifications:
Slotted: Yes
Weight (lb): 28
Height (IN): 3.5
Width (IN): 13.2
Height (MM): 89.2
Length (IN): 13.2
Hat Finish: Turned
Disc Finish: Turned
Material: Cast Iron
Surface Type: Smooth
Construction: Full Cast
Abs Tone Ring Included: No
Outside Diameter (MM): 325
Nominal Thickness (IN): 1.5
Outside Diameter (IN): 12.8
Rust Resistant Coating: Yes
Discard Thickness (IN): 1.44
Discard Thickness (MM): 36.6
Nominal Thickness (MM): 38.1
Bolt Circle Diameter (IN): 6.5
Bolt Circle Diameter (MM): 165.1
Center Bore Diameter (IN): 4.6 IN
Pad Contact Surface Width (IN): 2
Center Bore Diameter (MM): 118.1mm
Solid Or Vented Type Rotor: Vented
Overall Rotor Diameter (mm): 324.87mm
Pad Contact Surface Width (MM): 51.25
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Conventional Or Drum-In-Hat Type Rotor: Conventional
