BDS steps up the performance and capability of the 2013-2018 RAM 1500 trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links.

The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

1. The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance Tire/wheel combination. As you increase the Tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
2. Not recommended for AWD models.
3. Stock 17 inch and 18 inch wheels can not be re-installed. Stock 20 inch can be reinstalled with a factory Tire.
4. Will not fit adjustable air suspension equipped models.
5. This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
6. TRX models will achieve approximately 1 inchof additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4 inch lift system for about 5 inch of lift or replace the TRX struts with standard struts for use with this system.
7. This kit is FMVSS No.126 Compliant.

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• Factory Protection Plus drivetrain warranty included

Rear Lift Option

These vehicles vary from 1 inchto 3 inch tail high from the factory. BDS offers both 3 inch and 5 inch rear kits. Be sure to measure your vehicle and order the appropriate rear lift height to level your truck.

• 5 Inch Coil Springs - USe if your vehicle is level to 1 inchof tail high from the factory.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

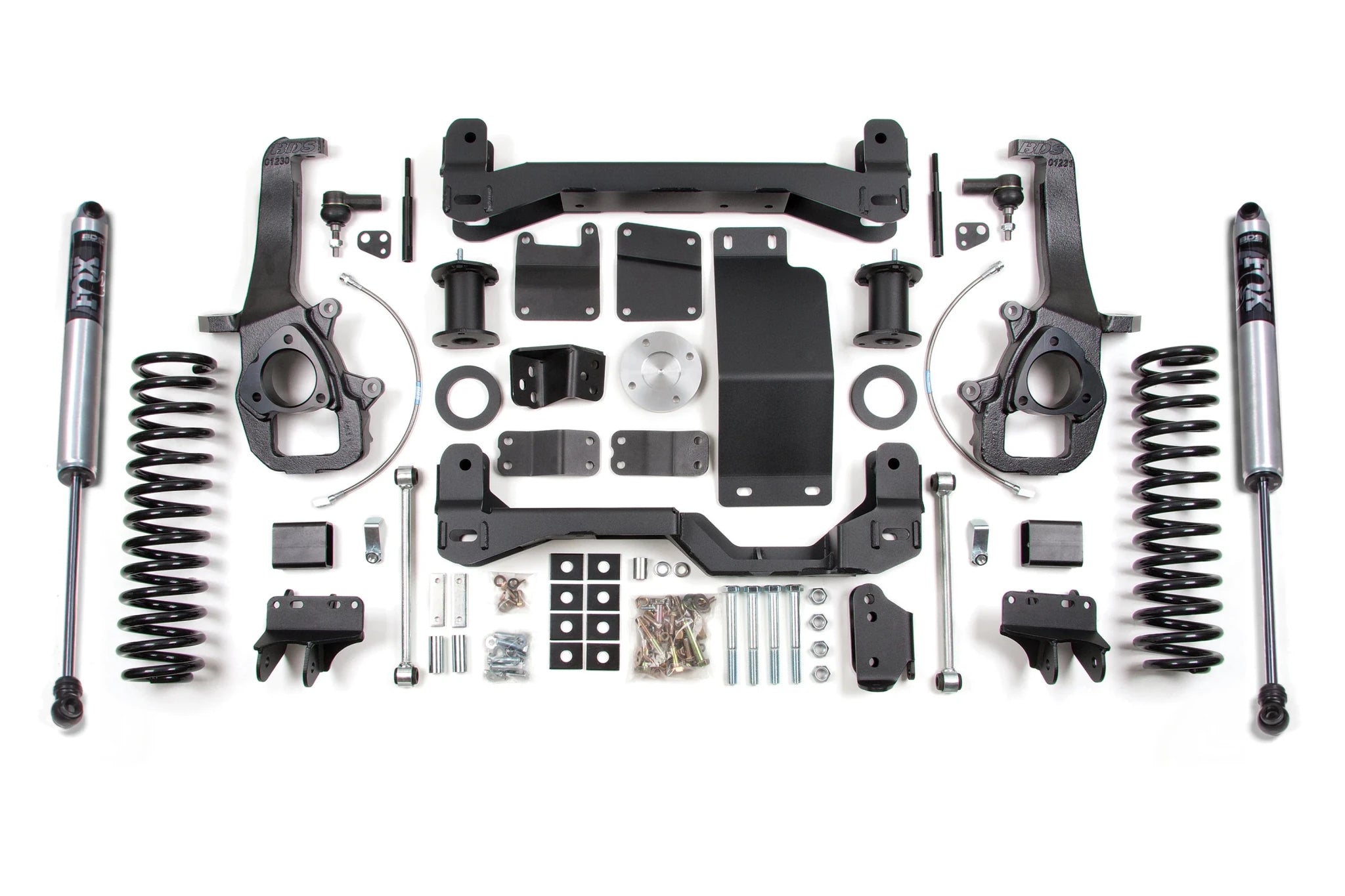

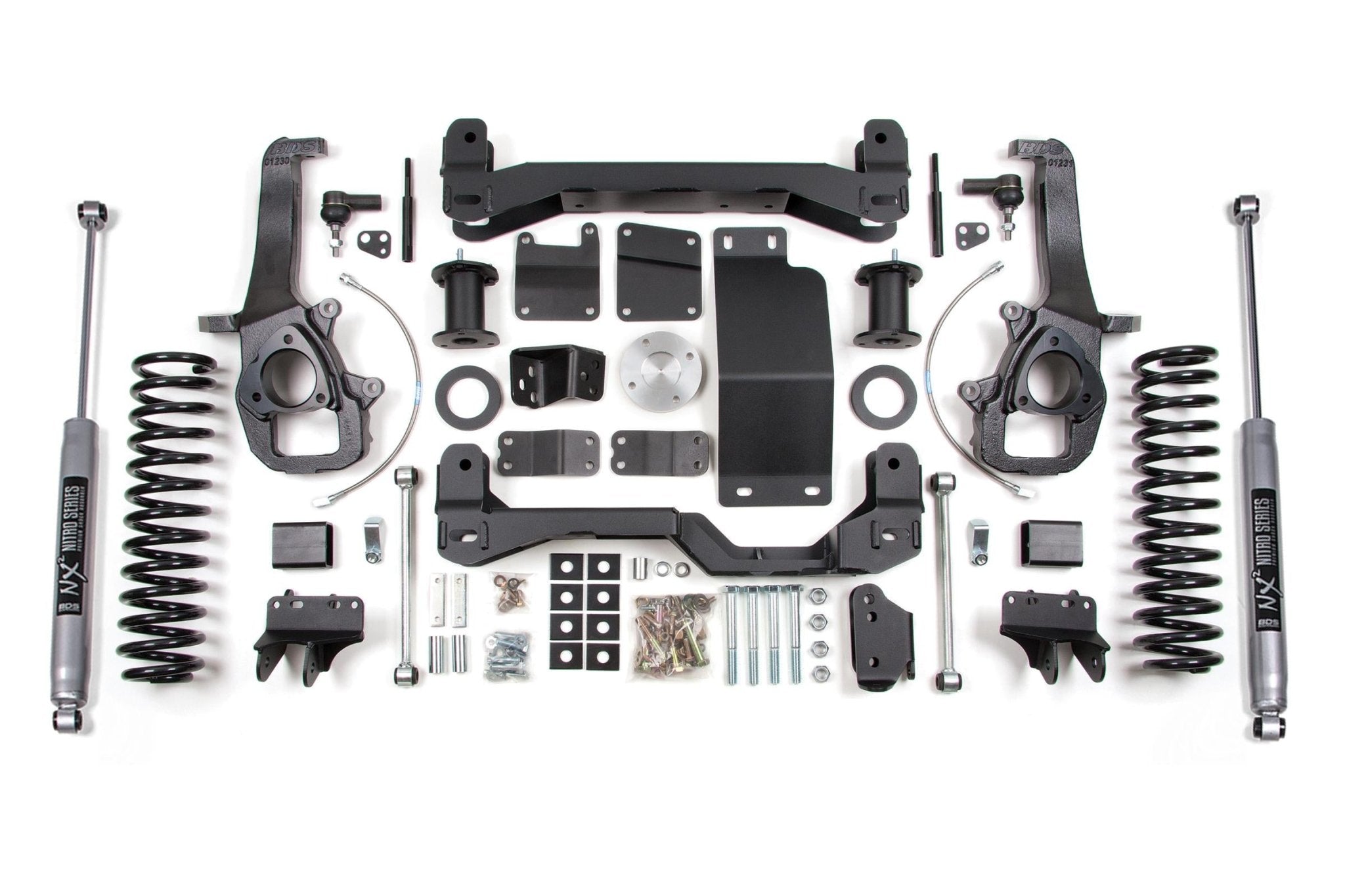

Kit Components:

• Includes one BDS022509, 09-10 Dodge 1500 5in Rear Box Kit, UPC Code 658848615414
• Includes one BDS022624, 2012 Dodge 1500 6 Inch Frnt Box Kit 3 of 4, UPC Code 658848615483
• Includes one BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4, UPC Code 658848615490
• Includes one BDS022630, 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4), UPC Code 658848615506
• Includes one BDS022631, 2013 DODGE 4WD FRONTBOXKIT (2 OF 4), UPC Code 658848615513
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
