BDS Suspension 4WD 3 Inch Lift Kit w/ Radius Arm (2020-2022 Powerstroke)
By ordering the BDS Suspension 4WD 3 Inch Lift Kit w/ Radius Arm (2020-2022 Powerstroke) you will earn 1672 DIESEL DOLLARS in your SDS Fuel Tank!
|Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 2% Cash Back to use for future buys!|
Description
**You will be contacted and charged separately about shipping cost.**
Level out and take your Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

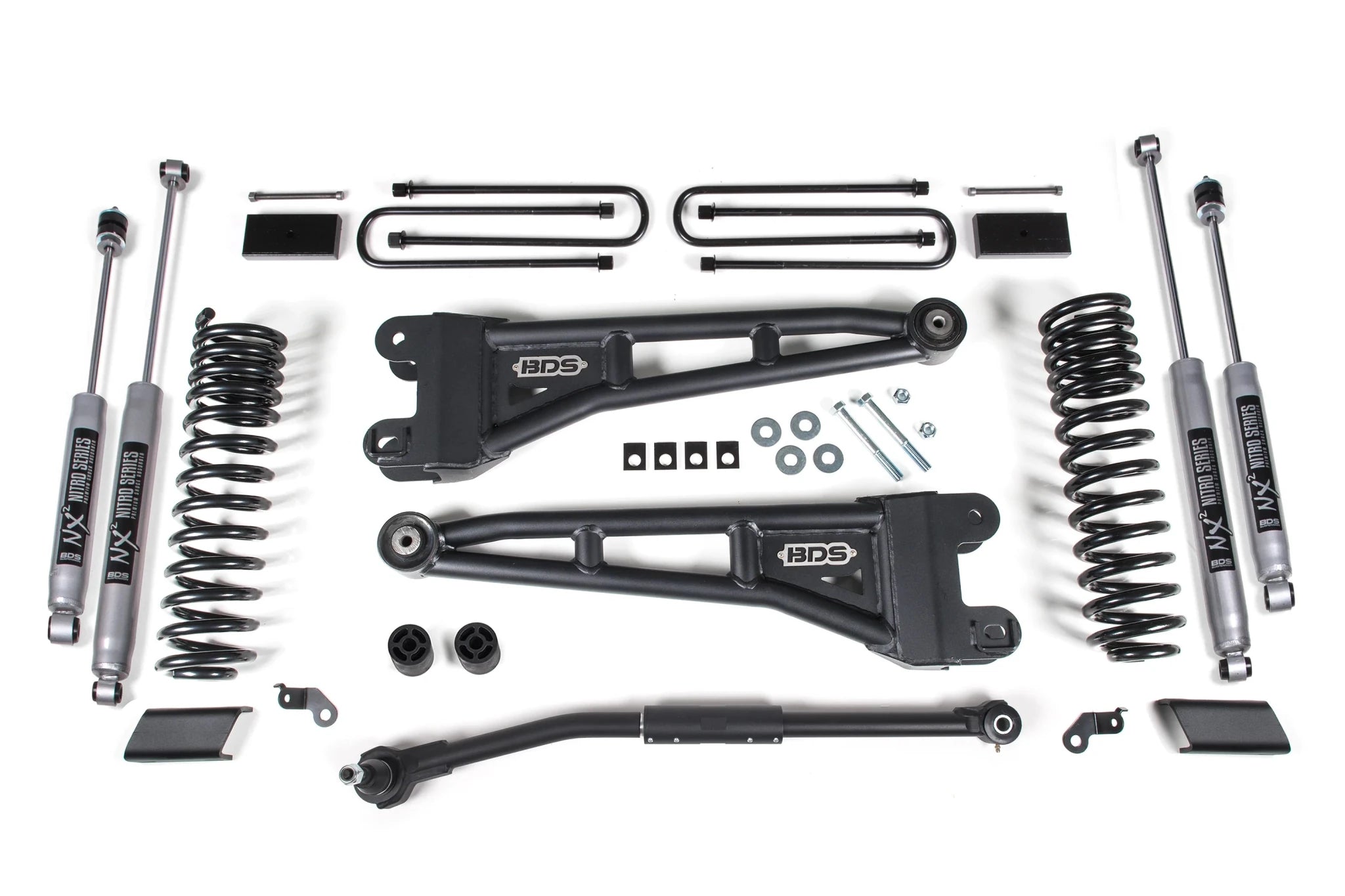

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Adjustable Track Bar
Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 1 inch
- Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2 inch front ride height).
- Larger Tires on stock wheels are not recommended due to the brake line clearance required. Use recommended specifications listed in the Tire and wheel fitment section.
- Installation requires a torque wrench capable of 405 ft-lbs.
- Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
- Trucks without top-mounted overload springs require (x4) UBT4031 available to purchase separately.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs ride smooth through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Adjustable solid steel track bar designed to recenter the front axle
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control

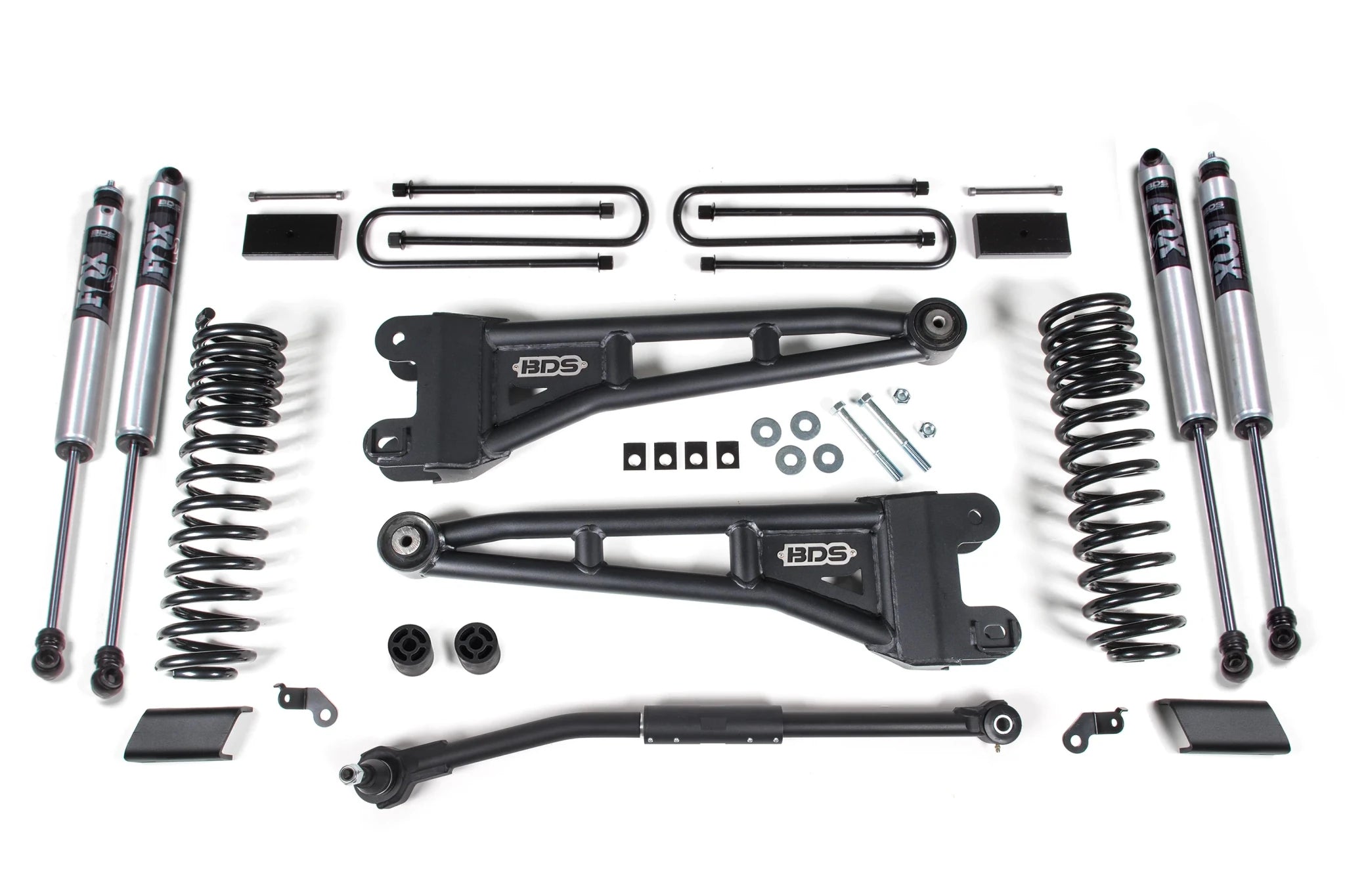

- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Shock Option

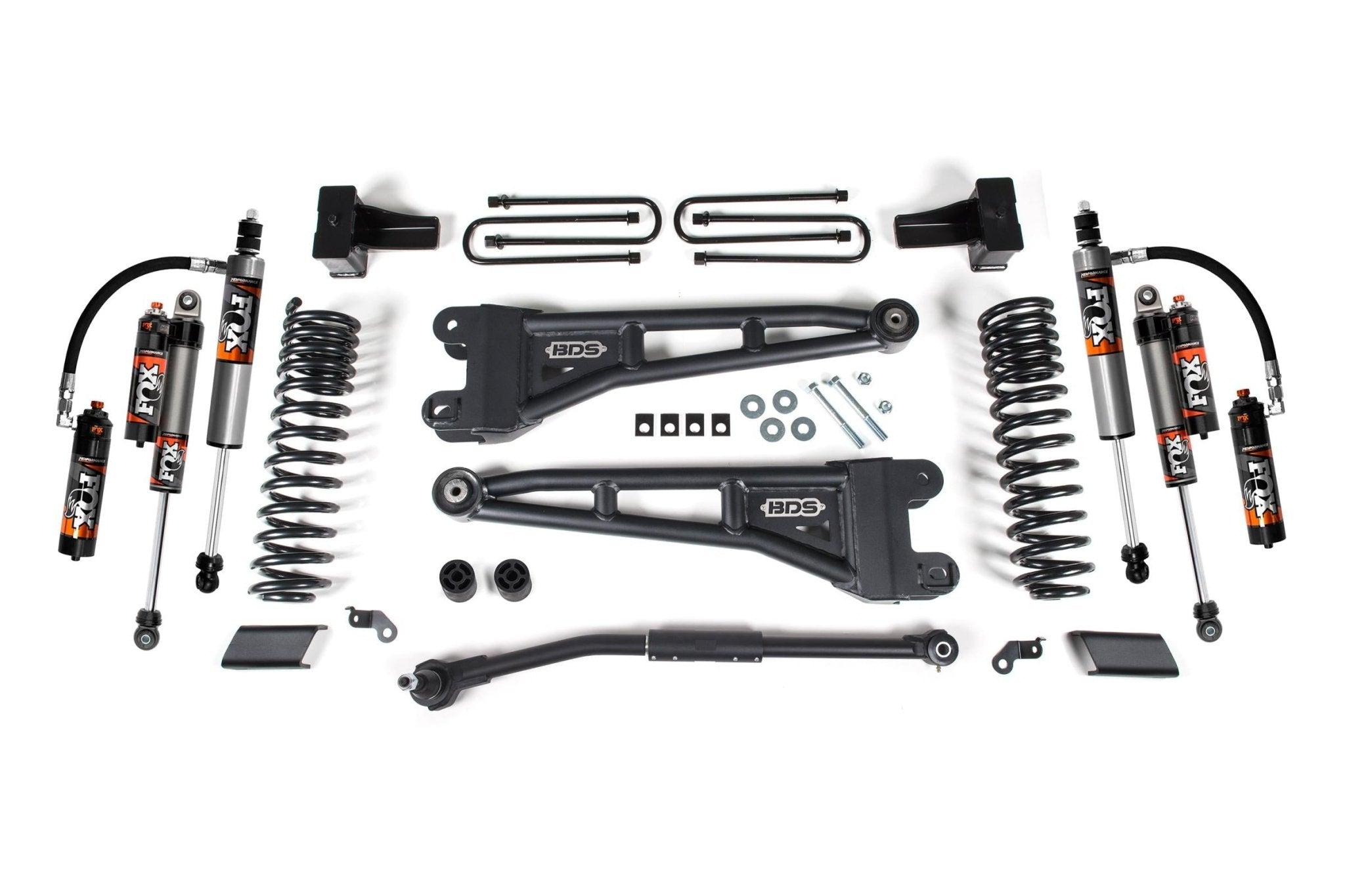

FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5
Kit Components:
- Includes one BDS013108, 2017-2024 F250/F350 1 inchRear Block Kit, UPC Code 658848613052
- Includes one BDS013261, 2020-2024 F250/350 2.5 inch Front Box Kit, UPC Code 658848613236
- Includes one BDS033251, 2005-2024 Ford Super Duty 2.5 inch Coil Spring Box Kit, Front Diesel, Pair, UPC Code 658848616480
- Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
- Includes one FOX88326096, Kit: 2017-2024 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 0-1.5 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326097, Kit: 2017-2024 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
