Up the ante in your 2019-2024 RAM 1500 4WD truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear the stance is leveled out with a pair of 1.5 inch dual rate coil springs designed for exceptional ride quality and additional load capacity over stock.

Your choice of rear FOX 2.0 Performance Series Internal Floating Piston gas shocks or upgrade FOX 2.5 Performance Elite Series Dual Speed Compression Adjust reservoir shocks are offered to match the front for next level performance and easy tuning to meet the demands out on the trail.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1.5 inch

1. Will not work with stock rims with a 12.50 inch wide Tire, the Tire will rub the UCA at full steering lock. If the stock rim is reinstalled it will need to be with the stock-size Tire ONLY!
2. The ball joint used is 500-1134, use this for replacement purposes if a new ball joint is ever needed. The ball joint is directional and must be installed with the 'dot' facing either inward or outward on the vehicle, otherwise, damage may occur
3. Vehicles equipped with Offroad or Rebel Package will not achieve the full 3 inch of lift, net ride height change will be around 2 inch above stock.

• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
• Dual Speed Compression Adjust Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

FOX 2.5 Performance Elite Series

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Tire Size: 33 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5

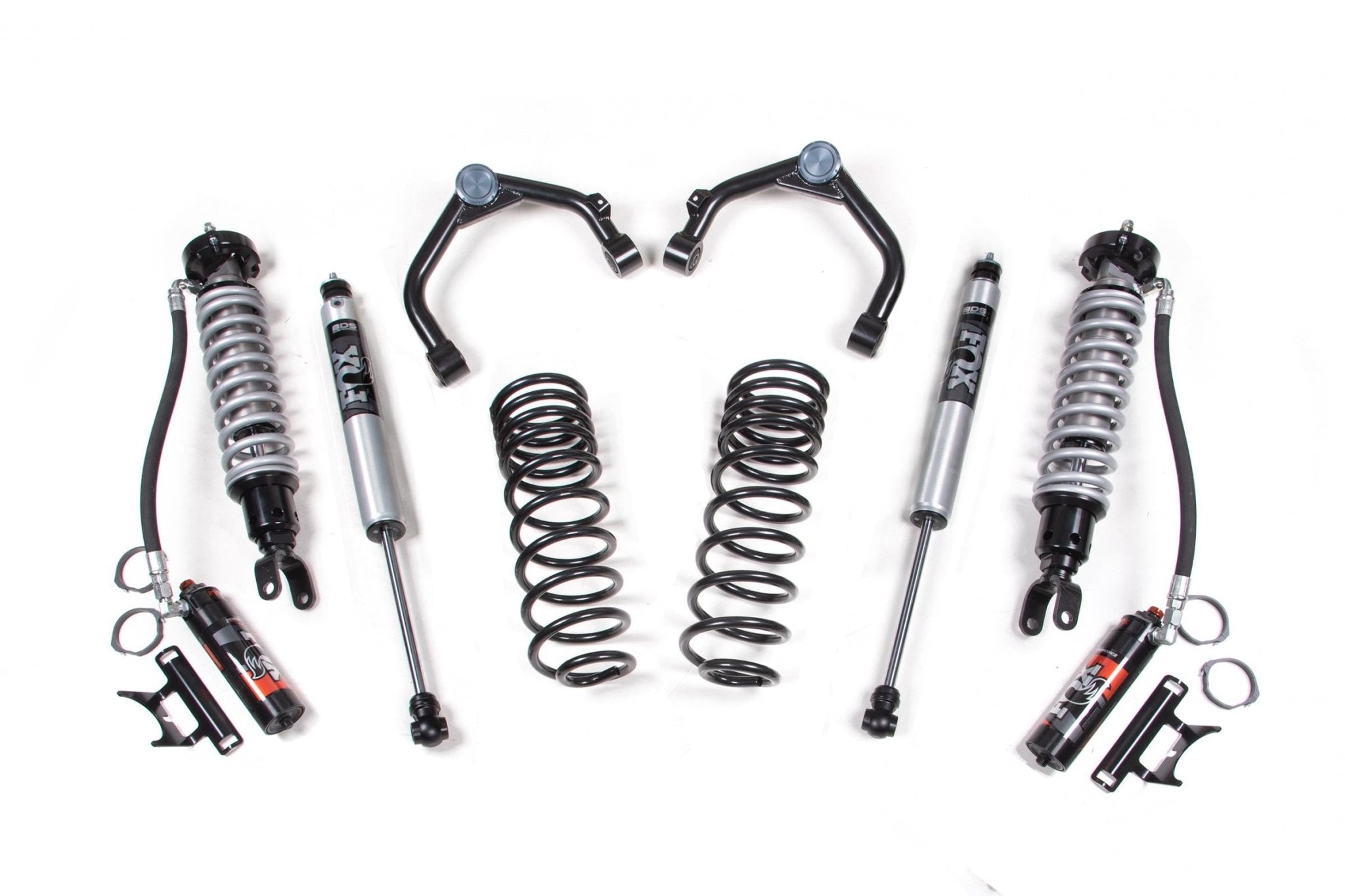

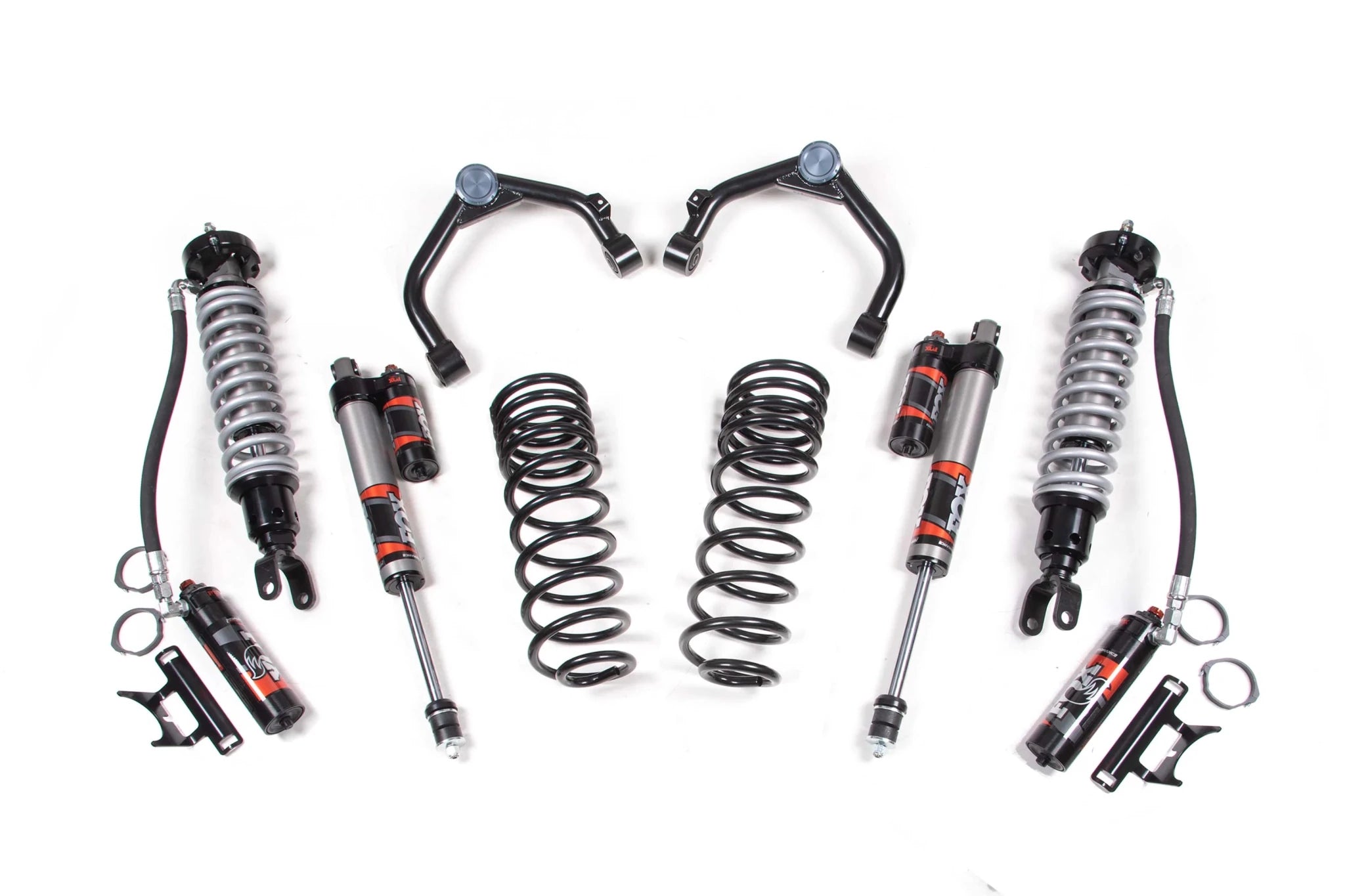

Kit Components:

• Includes one BDS012315, 2019-2023 Ram 1500 3in Performance Lift Box Kit, UPC Code 711745611443
• Includes one FOX88306166, Kit: 19-ON Ram 1500 w/ UCA, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 2-3 inch Lift, Dual Speed Compression Adjust
• Includes one FOX88326079, Kit: 19-ON Ram 1500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 0-2 inch Lift, Dual Speed Compression Adjust
