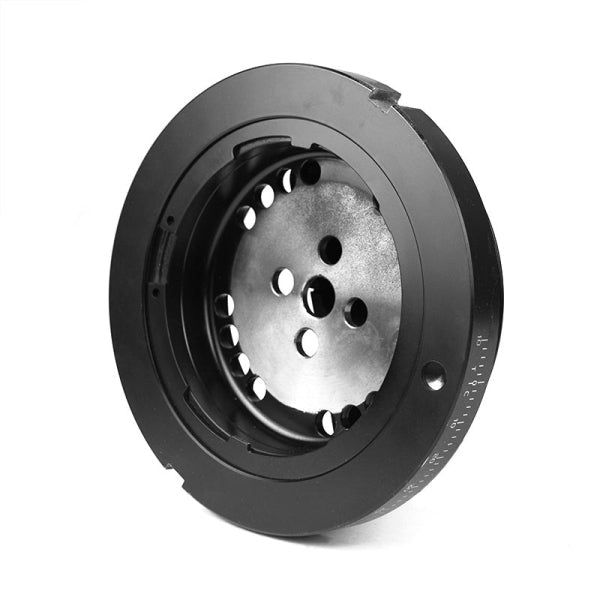

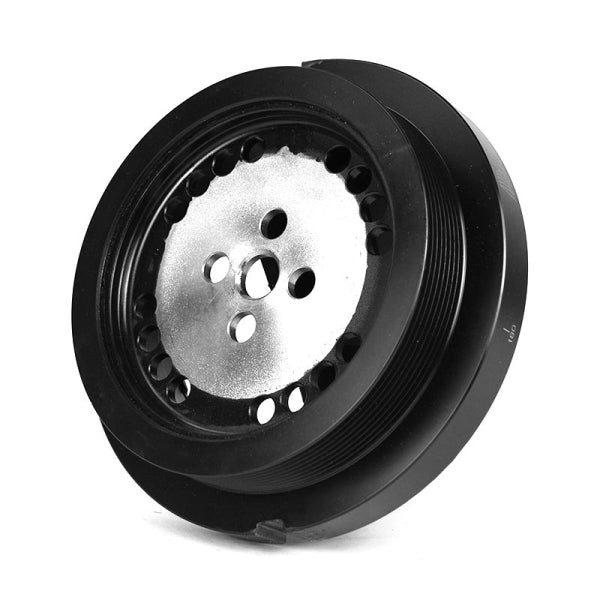

XDP XD718 Performance Balancer Series - Diesel Performance Harmonic Balancer (1989-1993 Cummins)
Get It Installed at Our Shop
Skip the Driveway — Our 9-Bay Diesel Shop in Wildwood, FL can Install this for You.
Secure Checkout
Genuine Parts
Fast Shipping
Diesel Experts
Not sure this fits your build? Call or Text Us: (352) 722-5295
Save Contact
Diesel Dollars is Southern Diesel Supply's Loyalty Program. Purchasing with Us Earns you 1 Point for every 1 Dollar spent to use for future buys!
By ordering the XDP XD718 Performance Balancer Series - Diesel Performance Harmonic Balancer (1989-1993 Cummins) you will earn 656 DIESEL DOLLARS in your SDS Fuel Tank!
The XDP Performance Balancer Series - Diesel Performance Harmonic Balancer XD718 is an ideal upgrade for your high-performance Dodge Ram 5.9L diesel. High-performance engines require a high-performance balancer. Upgrading the harmonic balancer (also known as a crankshaft vibration damper) when you increase your diesel's power output is vital for prolonged engine life. A performance balancer can be essential for engines with increased horsepower, torque, or RPM, as they are better designed to handle more extreme torsional vibrations and help prevent potential engine damage.
The Performance Balancer Series from XDP are designed to withstand the demands of modified diesel engines. Constructed with a Billet Steel Ring and Hub, the XDP Performance Balancers use an ultra-reliable pressure-bonded technology to bond the steel hub to the steel inertia ring. These balancers are engineered to meet SFI 18.1 specifications and are approved for race use. In addition, the balancers are dynamically balanced for smooth operation.
XD718 Harmonic Balancer Specifications:
Overall OD (in): 8.229
Nose OD (in): 0
Overall Width (in): 2.107
Crank Bore (in): 0.751
Ring Width (in): 2.106
Bolt Holes: 4
Counterweight Balance: Neutral, no counterweight
No. of Integrated Pulleys: 1
Pulley Type 1: Serpentine
Pulley Grooves 1: 8
Pulley OD 1 (in): 6.812
Crank Trigger/Exciter Plate: No
The Performance Balancer Series from XDP are designed to withstand the demands of modified diesel engines. Constructed with a Billet Steel Ring and Hub, the XDP Performance Balancers use an ultra-reliable pressure-bonded technology to bond the steel hub to the steel inertia ring. These balancers are engineered to meet SFI 18.1 specifications and are approved for race use. In addition, the balancers are dynamically balanced for smooth operation.
Features:
- Billet Steel Ring And Hub Construction
- Engineered To Meet SFI 18.1 Standards
- Pressure Bonded Technology To Ensure Secure Fit Of Inertia Ring
XD718 Harmonic Balancer Specifications:
Overall OD (in): 8.229
Nose OD (in): 0
Overall Width (in): 2.107
Crank Bore (in): 0.751
Ring Width (in): 2.106
Bolt Holes: 4
Counterweight Balance: Neutral, no counterweight
No. of Integrated Pulleys: 1
Pulley Type 1: Serpentine
Pulley Grooves 1: 8
Pulley OD 1 (in): 6.812
Crank Trigger/Exciter Plate: No
