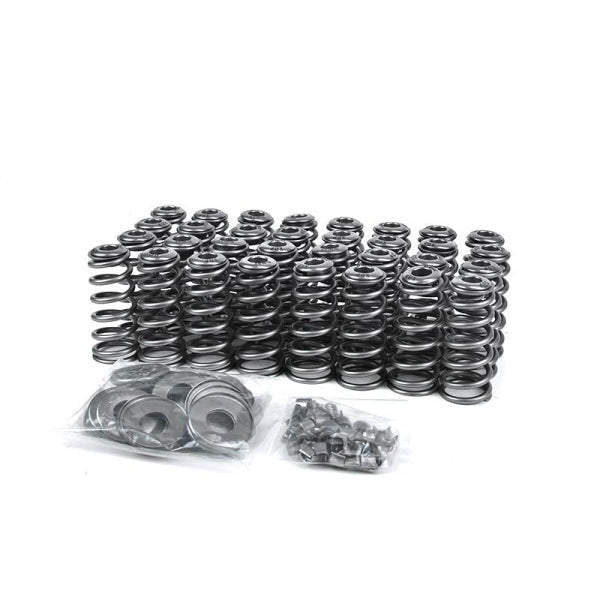

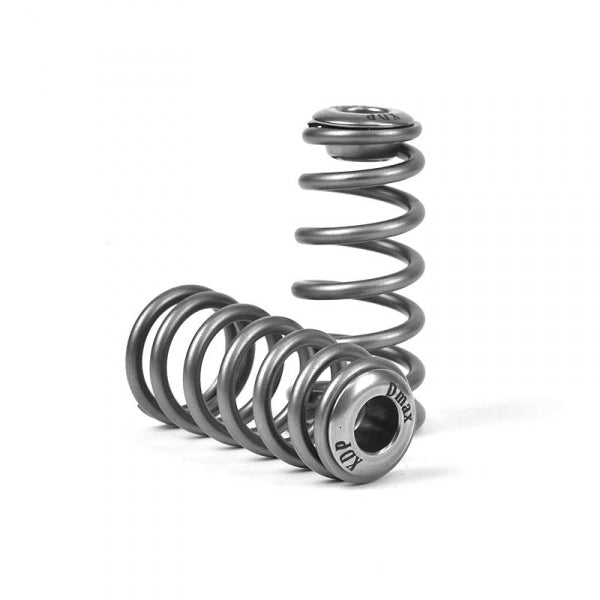

The XDP Performance Valve Springs & Retainer Kit XD386 are a perfect upgrade for your modified 2001-2016 GM 6.6L Duramax. Camshaft upgrades and other modifications that increase boost require more valve control. The XDP Performance Valve Spring feature a conical design for better valve control than a standard straight spring. The conical design also allows for smaller and lighter spring retainers. Each spring undergoes a stress relief process and is computer load mapped, to ensure quality and long-term reliability. Each  spring is matched within 1 lb of seat pressure to ensure consistency. Sold as a complete set with valve springs, retainers, and locks.

• 125 Lb. Seat Pressure
• Conical Spring Design
• Performance Valve Spring Kit
• Essential For Elevated Boost Levels
• Complete Set (Springs, Locks & Retainers)

Installed Height: 1.610”

Installed Pressure: 125lbs

210lbs @ 1.110”

Coil Bind: 1.050”
