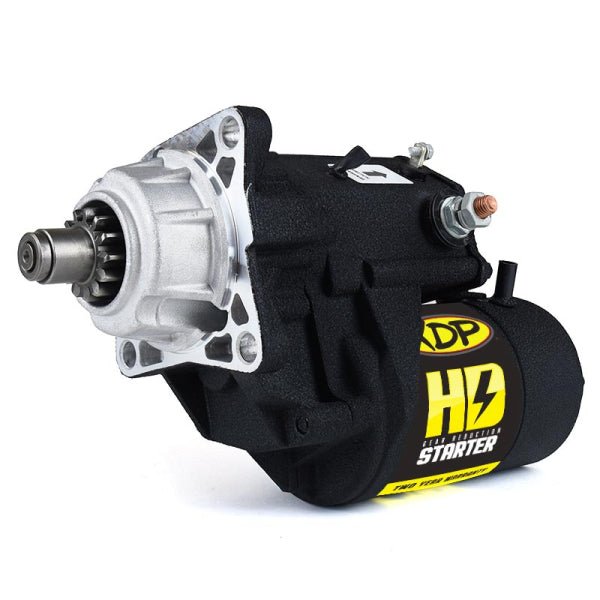

You can rely on the XDP HD Gear Reduction Starter (New) Wrinkle Black XD257 to get your 1994-2002 Dodge 5.9L Diesel running in the most extreme environments. XDP's HD Gear Reduction Starters are fast, strong, and durable, giving you the ability to turn over even the most aggressive diesel engines.

XDP's HD Gear Reduction Starters give you the torque you need for fast, consistent, and reliable starting. Each starter comes pre-tested and ready for installation. For added corrosion resistance, and enhanced aesthetics, each unit features a "Wrinkle Black" finish.

• HD Gear Reduction Design
• Direct-Fit Replacement
• Wrinkle Black Finish

• 3.6 HP
• 2.7 KW
• 260 Ft-Lbs. Torque
• 5.50:1 Gear Reduction

Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 11V DC. Starter heat shields are not required, but are an excellent idea for heat protection.
