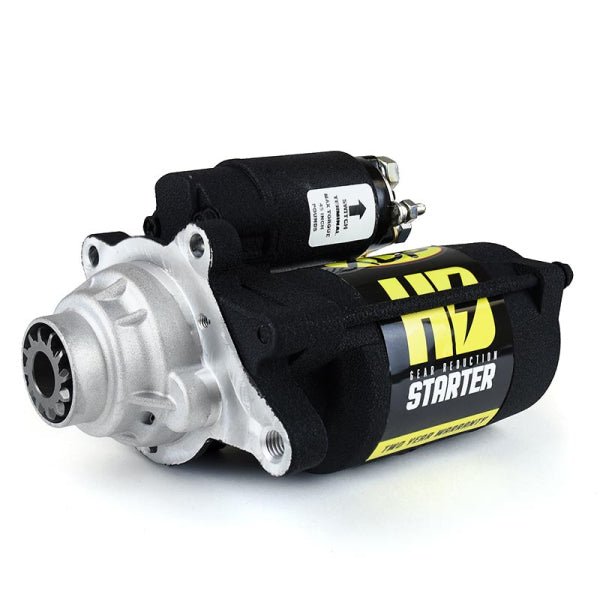

You can rely on the XDP HD Gear Reduction Starter (New) Wrinkle Black XD256 to get your 2008-2010 Ford 6.4L Powerstroke running in the most extreme environments. XDP's HD Gear Reduction Starters are fast, strong, and durable giving you the ability to turn over even the most aggressive diesel engines.
The XDP's HD Gear Reduction Starter features an efficient motor that produces the torque you need to start your engine. Each starter comes pre-tested, ready for installation and features a durable "Wrinkle Black" finish for added corrosion resistance and enhanced aesthetics.
Features:
- HD Gear Reduction Design
- Wrinkle Black Finish
- Increased Durability
Specifications:
- 4.0 HP
- 3.0 KW
- 275 Ft-Lbs. Torque
- 4.75:1 Gear Reduction
Tech Notes:
Depending on the conditions, a starter can pull up to 500 amps. These levels of amperage stress ALL components in the circuit including cables, terminals, batteries, and more. Problems with these components can be difficult to diagnose as they appear fine at rest and under a light load, but generate high resistance under heavy amperage draws. This results in low voltage to the starter while cranking, causing heavier amperage draw, and increased heat leading to starter failure. Batteries, cables and additional components should be checked and serviced regularly. Voltage measured at the starter during cranking should always be above 11V DC. Starter heat shields are not required, but are an excellent idea for heat protection.
This starter is not intended for use on a 6.0L Powerstroke. Using a 6.4L starter to "upgrade" the 6.0L unit can often result in premature failure due to excessive amperage draw. Starter failure due to improper application is not covered by warranty
This starter is not intended for use on a 6.0L Powerstroke. Using a 6.4L starter to "upgrade" the 6.0L unit can often result in premature failure due to excessive amperage draw. Starter failure due to improper application is not covered by warranty
Manufacturer Warranty*:
2 Year / Unlimited Mileage
2 Year / Unlimited Mileage
