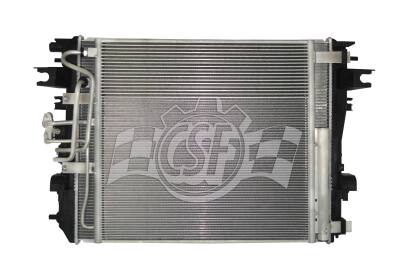

SDS has the CSF 3960 OEM Style Replacement Radiator that will replace the blown-out radiator in your truck. The drop-in radiator utilizes EPDM Rubber gaskets to withstand extreme temperatures and leak tested to 150 percent rated operating pressure to ensure there are no leaks. CFS radiators are carefully engineered and wind tunnel tested for cooling performance validation.

FEATURES:

• Drop-Fit Replacement
• OEM Specified Plastic Tank-Aluminum Core Construction
• High-Performance Multi-Louvered Fins Design To OEM Specifications
• Leak Tested Before Leaving Factory At 150-Percent Operating Pressure
• All Components Are Installed, Torqued, & Tested On Radiator During assembly
• Gaskets Made From Special Grade "EPDM" Rubber To Withstand Extreme Temperatures Down To - 120F
• Tanks Made From Virgin Grade Engineered Plastic Resins That Are "Glass Filled" For Added Strength & Durability

Specification:

• Core Length: 27.5"
• Core Material: Aluminum
• Core Thickness: 1.1875"
• Core Width: 21.6875"
• Cross-flow/ Down-flow: Cross Flow
• Inlet Length: 22.675"
• Inlet Width: 1.625"
• No. Of Rows: 1
• Oil Cooler: No
• Outlet Length: 22.6875"
• Outlet Width: 1.625"
• Radiator Cap Supplied: No
• Tank Material: Plastic
• Top Hose Fitting: 1.5" Left
