Fitment: GMC & Chevrolet, 2500HD & 3500HD, Duramax 2001-2016

Fuel System rating: 250gph/8-10psi

A FASS Fuel System will be a very beneficial upgrade for your GM Duramax diesel engine, this is because your Duramax doesn’t come with a factory System like other diesels. This requires your CP3/CP4 injection System to pull your fuel under a vacuum, adding additional stress to your CP3/CP4 System and risk introduce of additional air/vapor into your fuel injection System. This is where a Titanium Signature Series FASS Fuel System comes in to help.

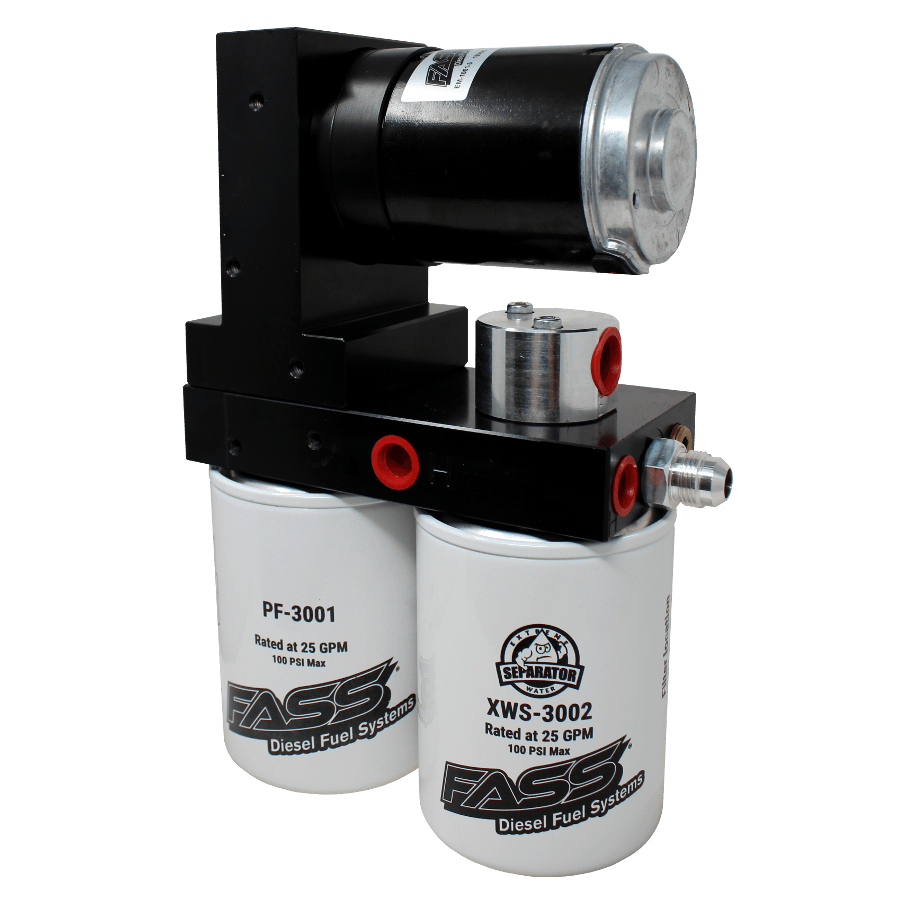

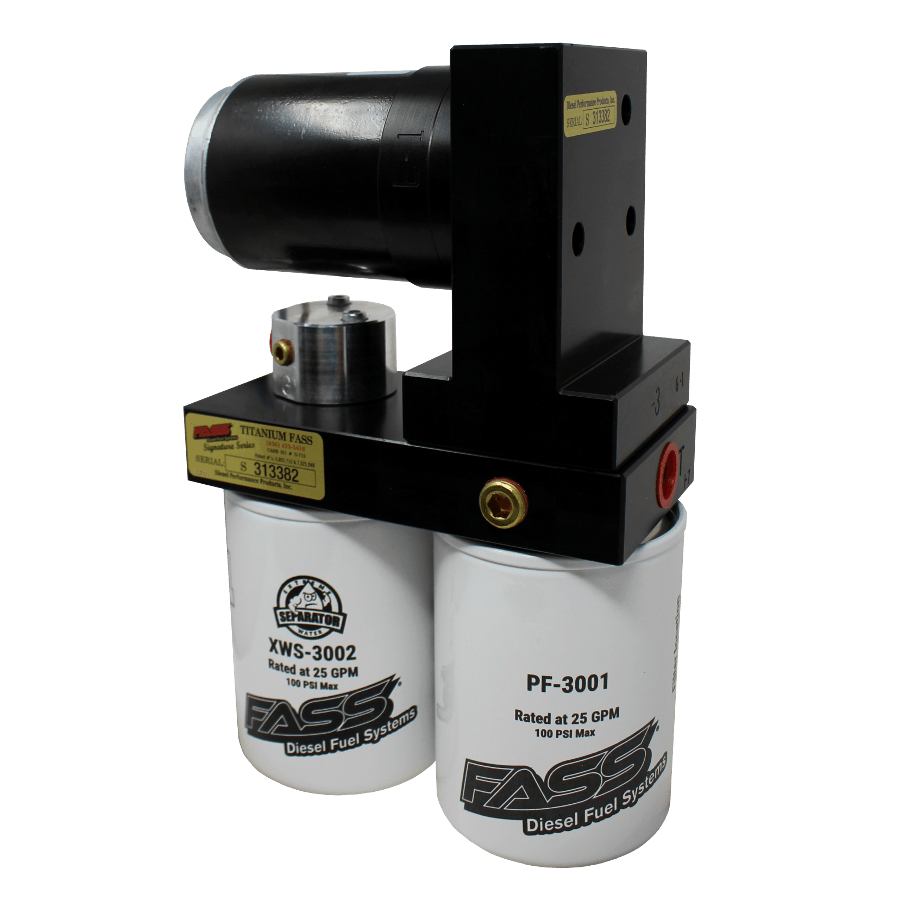

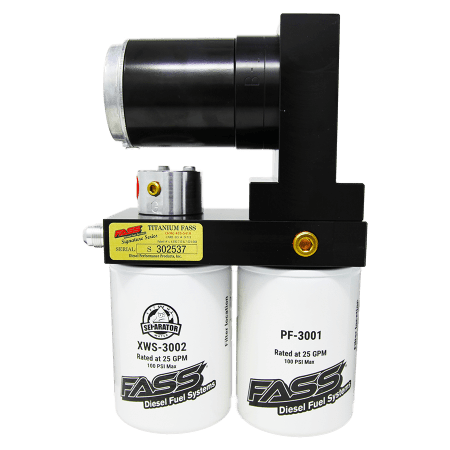

The Titanium Signature Series diesel fuel System was engineered by FASS Diesel Fuel Systems to be the top performing, longest lasting, quietest and most reliable aftermarket filtration System in the diesel industry. Rated at 250 gallons per hour and backed by our available limited lifetime warranty (with registration) the Titanium Signature Series fuel System can support your GM Duramax 6.6L diesel engine with enough fuel for 900-1200 HP.. A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your Duramax’s injection Systems, effectively tripling the life of your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter and FASS Diesel Fuel Systems patented air/vapor removal process. Duramax diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration System is designed to eliminate those that are fuel related.

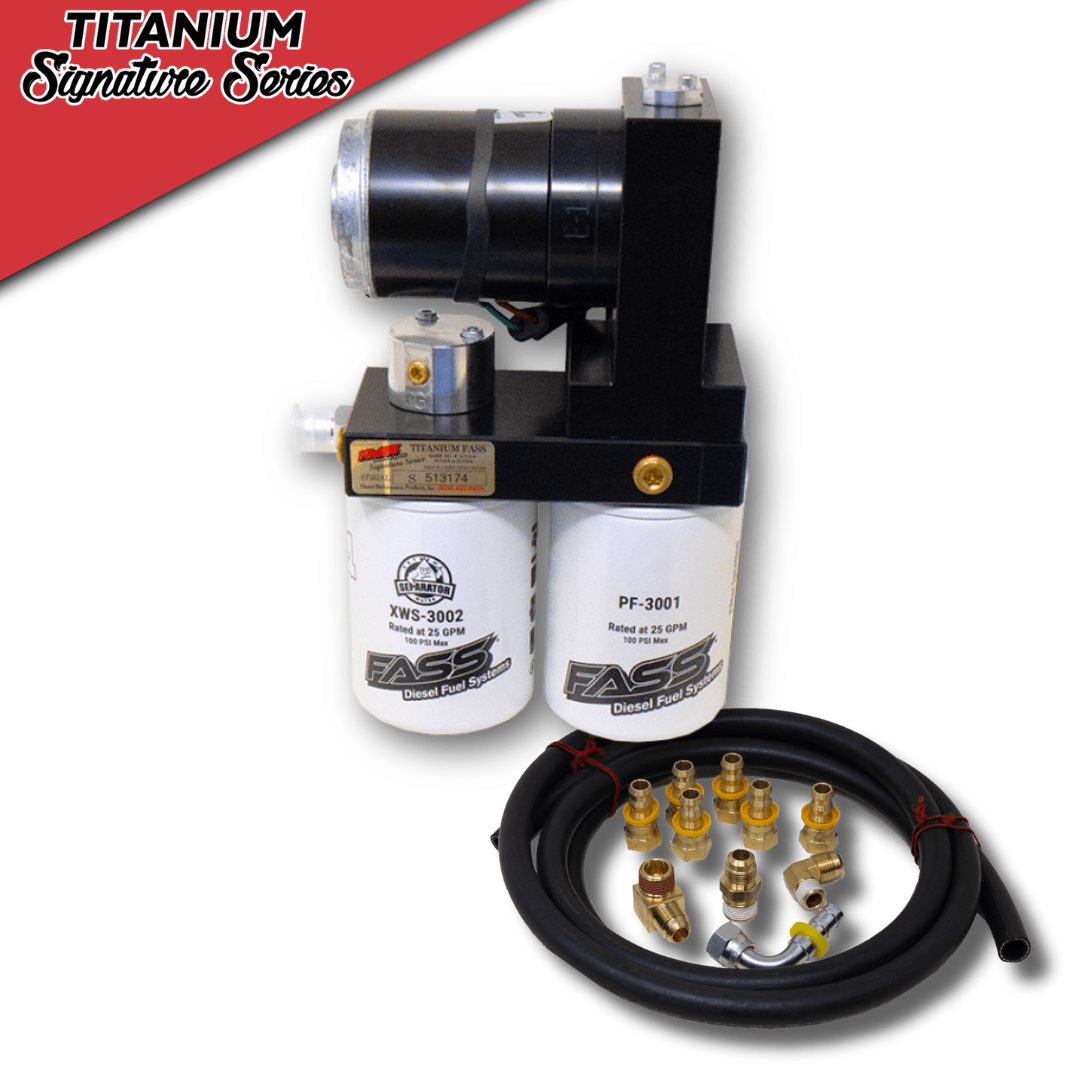

This kit includes a Bulkhead Fitting and Suction Tube. Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8” Suction Tube and suction fuel line along with a ½”” Fuel Return Port. This new and improved version from our previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.

The Titanium Signature Series diesel fuel Systems are the superior fuel System and filtration System, in the diesel industry. This is because here at FASS Diesel Fuel Systems we focus on perfecting our Systems and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door. By doing this we have less than a 1% failure rating with our motor and a design that implements unique design features you can only get with FASS Diesel Fuel Systems

• FASS Whisper Technology (FWT) was engineered to meet the stringent demands of  today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper”while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates
• Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currentsfrom forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air /vapor Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air /vapor back into your fuel.
• Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure “EXTREME” cold weather operations!
• Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series System takes only minutes and all brackets are made from machined steel for superior support and strength.

NOTE: Installation of this kit on a cab and chassis may require modifications.

2001-2016 Duramax 250GPH Fuel System Features:

Vehicle Fitment by Year

• 2001 Chevrolet Silverado 2500HD 6.6L Duramax
• 2002 Chevrolet Silverado 2500HD 6.6L Duramax
• 2003 Chevrolet Silverado 2500HD 6.6L Duramax
• 2004 Chevrolet Silverado 2500HD 6.6L Duramax
• 2005 Chevrolet Silverado 2500HD 6.6L Duramax
• 2006 Chevrolet Silverado 2500HD 6.6L Duramax
• 2007 Chevrolet Silverado 2500HD 6.6L Duramax
• 2008 Chevrolet Silverado 2500HD 6.6L Duramax
• 2009 Chevrolet Silverado 2500HD 6.6L Duramax
• 2010 Chevrolet Silverado 2500HD 6.6L Duramax
• 2011 Chevrolet Silverado 2500HD 6.6L Duramax
• 2012 Chevrolet Silverado 2500HD 6.6L Duramax
• 2013 Chevrolet Silverado 2500HD 6.6L Duramax
• 2014 Chevrolet Silverado 2500HD 6.6L Duramax
• 2015 Chevrolet Silverado 2500HD 6.6L Duramax
• 2016 Chevrolet Silverado 2500HD 6.6L Duramax
• 2001 Chevrolet Silverado 3500 6.6L Duramax
• 2002 Chevrolet Silverado 3500 6.6L Duramax
• 2003 Chevrolet Silverado 3500 6.6L Duramax
• 2004 Chevrolet Silverado 3500 6.6L Duramax
• 2005 Chevrolet Silverado 3500 6.6L Duramax
• 2006 Chevrolet Silverado 3500 6.6L Duramax
• 2007 Chevrolet Silverado 3500 6.6L Duramax
• 2008 Chevrolet Silverado 3500 6.6L Duramax
• 2009 Chevrolet Silverado 3500 6.6L Duramax
• 2010 Chevrolet Silverado 3500 6.6L Duramax
• 2011 Chevrolet Silverado 3500HD 6.6L Duramax
• 2012 Chevrolet Silverado 3500HD 6.6L Duramax
• 2013 Chevrolet Silverado 3500HD 6.6L Duramax
• 2014 Chevrolet Silverado 3500HD 6.6L Duramax
• 2015 Chevrolet Silverado 3500HD 6.6L Duramax
• 2016 Chevrolet Silverado 3500HD 6.6L Duramax
• 2001 GMC Sierra 2500HD 6.6L Duramax
• 2002 GMC Sierra 2500HD 6.6L Duramax
• 2003 GMC Sierra 2500HD 6.6L Duramax
• 2004 GMC Sierra 2500HD 6.6L Duramax
• 2005 GMC Sierra 2500HD 6.6L Duramax
• 2006 GMC Sierra 2500HD 6.6L Duramax
• 2007 GMC Sierra 2500HD 6.6L Duramax
• 2008 GMC Sierra 2500HD 6.6L Duramax
• 2009 GMC Sierra 2500HD 6.6L Duramax
• 2010 GMC Sierra 2500HD 6.6L Duramax
• 2011 GMC Sierra 2500HD 6.6L Duramax
• 2012 GMC Sierra 2500HD 6.6L Duramax
• 2013 GMC Sierra 2500HD 6.6L Duramax
• 2014 GMC Sierra 2500HD 6.6L Duramax
• 2015 GMC Sierra 2500HD 6.6L Duramax
• 2016 GMC Sierra 2500HD 6.6L Duramax
• 2001 GMC Sierra 3500 6.6L Duramax
• 2002 GMC Sierra 3500 6.6L Duramax
• 2003 GMC Sierra 3500 6.6L Duramax
• 2004 GMC Sierra 3500 6.6L Duramax
• 2005 GMC Sierra 3500 6.6L Duramax
• 2006 GMC Sierra 3500 6.6L Duramax
• 2007 GMC Sierra 3500 6.6L Duramax
• 2008 GMC Sierra 3500 6.6L Duramax
• 2009 GMC Sierra 3500 6.6L Duramax
• 2010 GMC Sierra 3500 6.6L Duramax
• 2011 GMC Sierra 3500HD 6.6L Duramax
• 2012 GMC Sierra 3500HD 6.6L Duramax
• 2013 GMC Sierra 3500HD 6.6L Duramax
• 2014 GMC Sierra 3500HD 6.6L Duramax
• 2015 GMC Sierra 3500HD 6.6L Duramax
• 2016 GMC Sierra 3500HD 6.6L Duramax
